450℉/232℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

Application

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for

installed down well in the oil industry.

Standard

IEEE Std. 1018 API RP 11S5 API RP 11S6

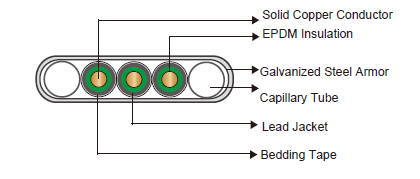

Construction

450℉/232℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

Conductor: Solid bare copper conductor.

Insulation: EPDM insulation with a poly adhesive layer to the conductor.

Jacket: Lead jacket.

Tape: Overlapped fiber cloth bedding tape.

Armor: Galvanized steel tape.

Capillary Tube: SS 316.

Dimensions and Weight

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

mm

Inches

mm

Inches

mm

kg/km

QYEQC-232-5KV-3G2

2

33.62

6.54±0.07

0.07

1.9

0.63 x 2.40

16.0 x 61.0

3820

QYEQC-232-5KV-3G4

4

21.15

5.19±0.05

0.07

1.9

0.57 x 2.24

14.5 x 57.0

3240

Electrical Data

Voltage

KV AC

5

Minimum Insulation Resistance (15.6℃)

MΩ·km

2AWG-1294; 4AWG-1548

Maximum DC Current Unbalance

%

2

Maximum DC Leakage (15.6℃)

μA/(KV·km)

2AWG-0.77; 4AWG-0.65

Maximum DC Conductor Resistant

Ω/km

2AWG-0.522; 4AWG-0.83

DC 35kV/5min



No breakdown

Mechanical Data

Temperature Rated

232

Minimum Bending Radius

mm

2AWG-320; 4AWG-280
